BRAND NEW-IN-THE-BOX (2) KYOCERA KC130TM - 130 WATT 12VDC SOLAR ELECTRIC GENERATORS WITH A UNIRAC TOP OF THE POLE MOUNT 5001 FOR THE 2 KYOCERA KC130TM SOLAR PANELS...(Charge Controller & Schedule 40 Galvanized Mounting Pole & Batteries sold separately...)

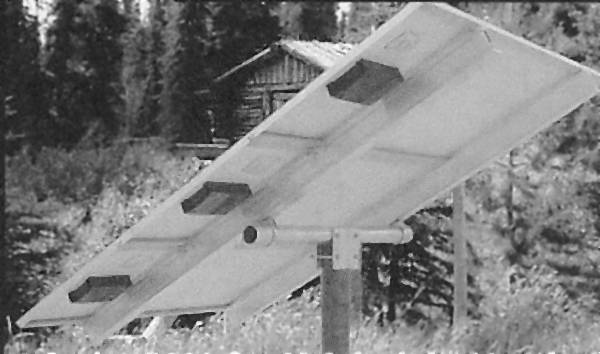

NOT ONLY CAN THIS UNIT GENERATE UP TO 1300 WATT HOURS OF SOLAR POWER, IT CAN PROVIDE COOL SHADE FOR DECK, PATIO, OR GARDEN...
Note: Please allow UP TO 15 business days for delivery due to the extreme shortage and escalating demand for this product...
Note: We Export, inquire within @ 1-800-222-0017...
KYOCERA KC130TM 130 WATT 12VDC SOLAR PANEL SPECIFICATIONS PER PANEL...
Kyocera's
advanced cell processing technology and automated production facilities produce
a highly efficient multicrystal photovoltaic module...
The
conversion efficiency of the Kyocera solar cell is over 16%...
These
cells are encapsulated between a temered glass cover and a pottant with back
sheet to provide efficient protection from the severest environmental conditions...
The
entire laminate is installed in an anodized aluminum frame to provide structural
strength and ease of installation...
Module
is UL1703 Certified and created in a factory under ISO9001 and ISO 14001 certified...
25
Year Manufacture's Warranty
Nominal
Operating Cell Temperature is 47 degrees C...
Isc
Current Temperature Coefficient = (3.18x10/-3) A/ degrees C
Voc
Voltage Temperature Coefficient = (-8.21x10/-2) V/ degrees C
Maximum
Power = 130 Watts
Tolerance
= +10% / -5%
Maximum
Power Voltage = 17.6 Volts
Maximum
Power Current = 7.39 Amps
Open
Circuit Voltage = 21.9 Volts
Short
Circuit Current = 8.02 Amps
Length
= 56.1 in.
Width
= 25.7 in.
Depth
= 2.3 in.
Weight
= 26.8 lbs.
This
module has passed the mfg. "Thermal Cycling Test"..
This
module has passed the mfg. "Thermal Shock Test"...
This
module has passed the mfg. "Thermal/Freezing and High Humidity Cycling Test"...
This
module has passed the mfg. "Electric Isolation Test"...
This
module has passed the mfg. "Hail Impact Test"...
This
module has passed the mfg. "Mechanical, Wind and Twist Loading Test"...
This
module has passed the mfg. "Salt Mist Test"...
This
module has passed the mfg. "Light and Water-Exposure Test"...
This
module has passed the mfg. "Field Exposure Test"....
THE BELOW CHARGE CONTROLLER IS NOT INCLUDED IN THIS SYSTEM, BUT IS AVAILABLE FOR AN ADDITIONAL AMOUNT OF $89.00 USD, ON TOP OF THE PURCHASE PRICE... (The charge controller will protect the battery from being over-charged by the solar panel...)
MORNINGSTAR SUNSAVER 20 CHARGE CONTROL SPECIFICATIONS
12
Volts
20
Amps
Full,
continuous current ratings at 60 degrees C ambient temperatures.
Advanced
lightning and transient overvoltage protection.
Reverse
polarity protection.
High
quality surface-mount components..
Series
switching design for improved safety and protection.
Confirmed
increase in battery capacities and operating life.
PWM
pulse charging for highest charge acceptance.
Standard
temperature compensation.
Standard
Sealed/Flooded battery select at the terminal.
Accuracy
to millivolt levels.
Buily
in a world class ISO 9002 certified facility.
Automated
production so every unit is exactly the same.
Parts
soldered to .0006 inch accuracy.
Anodized
case, amrine terminals, custom potting material.
THE BELOW CHARGE CONTROLLER IS NOT INCLUDED IN THIS SYSTEM, BUT IS AVAILABLE FOR AN ADDITIONAL AMOUNT OF $89.00 USD, ON TOP OF THE PURCHASE PRICE... (The charge controller will protect the battery from being over-charged by the solar panel...)

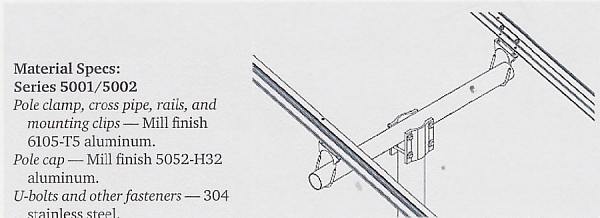

UNIRAC SERIES 5001 MODEL NUMBER 500128 TOP OF THE POLE MOUNT SPECIFICATIONS
Rail
Legth = 52"
Crosspipe
Length = 40"
Module
Bolt Sets = 2
Non-Shipping
Weight = 22 lbs
Non-Shipping
Demensions in Inches = 56x5x4
Up
to 33 square feet for installer supplied 3 inch Scedule 40 or 80 galvanized
steel pipe... (This auction does not include the galvanized steel pipe...)
0
degrees to 90 degrees Tilt Ability...
Unirac
SolarMount (R)Heavy Duty Rail...
Ten
Year Warranty by MFG...
FOR TECHNICAL ASSISTANCE OR QUESTIONS BEFORE YOU BID, CALL 1-800-222-0017 (24/7) Ask For BEN...
Note: Please allow UP TO 15 business days for delivery due to the extreme shortage and escalating demand for this product...
WE RESERVE THE RIGHT TO CANCEL THIS SYSTEM FOR SALE WHEN THE SUPPLY RUNS OUT...
Note: We Export, inquire within @ 1-800-222-0017...
Use the below back button to see our entire collection of systems and our website...
