BRAND NEW SOLAR PANEL GRIDP-TIE, NET METERING SYSTEM CONSISTING OF 6 SHELL 175 WATT SOLAR MODULES, 1800 WATT SMA SUNNY BOY NET METERING INVERTER AND UNIRAC SOLAR MOUNT....
CUT YOUR ELECTRIC BILL AND TAKE A 30% INCOME TAX CREDIT WITH THIS GRID TIE NET METERING SYSTEM CONSISTING OF 6 SHELL 175 WATT SOLAR PANELS, SMA SUNNY BOY SMR 1800U INVERTER AND UNIRAC ROOF SOLAR MOUNT...
JOIN OUR NETWORK OF CONTRACTORS WHO ARE HELPING THEIR CUSTOMERS CUT THEIR ELECTRIC BILLS AND PROVIDING BACK-UP SYSTEMS WITH SOLAR AND WIND POWER...
WE PROVIDE WIND & SOLAR POWER SYSTEMS, DESIGN, TECH AND MARKETING SUPPORT...
CALL 1-800-222-0017 (24/7)
E-MAIL US AT greenpower@solarpath.com for details...
STATE AND FEDERAL INCENTIVES: There is a federal tax incentive called the "Energy Credit" that allows businesses and residences to take a tax credit for renewable energy equipment... If you have access to the world wide web, look at http://www.dsireusa.org for more information about incentives in your area, or inquire within at 1-800-222-0017 and ask for Ben....
THIS SYSTEM MUST BE INSTALLED IN ACCORDANCE WITH NEC ELECTRIC CODES AS WELL AS LOCAL AND REGIONAL CODES... THE INSTALLER IS EXPOSED TO VOLTAGE AND CURRENTS TAHT ARE CONSIDERED LETHAL AND COULD CAUSE INJURY OR DEATH IF NOT INSTALLED PROPERLY... SOLARPATH ENERGY SYSTEMS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSS OR DAMAGE WHICH MIGHT ARISE OUT OF THE INSTALLATION OR USE OF THESE PRODUCTS...
Shipping Information: BUYER PAYS ACTUAL SHIPPING COSTS, and is for shipment for these items within the Continental United States Only, excluding Alaska... For shipping and handling cost to Alaska, Hawaii and PR, please inquire within or call 1-800-222-0017 and ask for Ben... If you should happen to get the service when calling, please leave your name, number and best time to call and the service will page Ben and he will respond a.s.a.p...
Note: Please allow up to 15 business days for delivery due to the extreme shortage and escalating demand for these products...
Note: These items can be terminated without notice when our supply becomes exhausted...
Note: We Export, inquire within @ 1-800-222-0017...
Note:

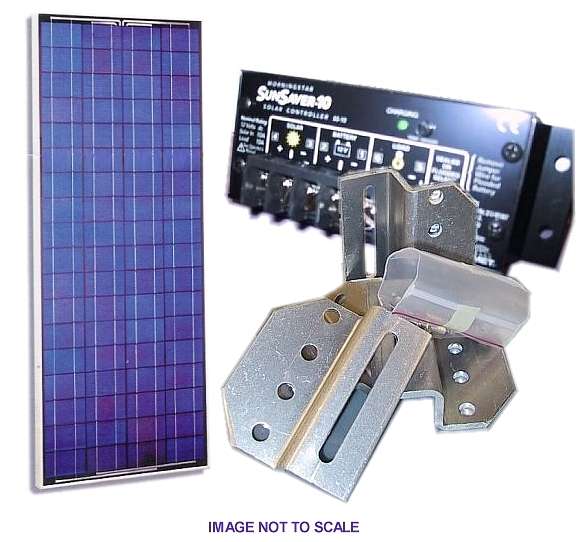

SHELL 175 PC - 175 WATT 24vdc SOLAR PANEL SPECIFICATIONS, PER PANEL...
25 Year Limited Warranty by Manufacturer...
Listed by Underwriter's Laboratories for UL 1703...
Certified for IEC 61215...
High efficiency crystalline silicon cell technology; enhanced by TOPS(tm) and new silicon nitride anti-reflection coatings...
One of the industry's leading energy yields in a wide variety of climates...
Products rated on fully stabilized initial power so you get the power you pay for...
Module design proven over 30 years of field operations with field failure rates less than 0.1%...
Extended limited power warranties backed by a company you can trust...
Suitable for high snow and wind loads...
UL Fire Safety Class C
Pre-assembled cables and Multi-Contact (registered) plugs...
12 mounting holes per product; 4 grounding holes...
20 Amp series fuse rating...
Legnth = 63.9" Width = 32.1" Depth = 2.2" Weight = 38 lbs
Note: This panel comes with "MC" connector junction box, one negative wire and one positive wire...
Rated Power = 175 Watts
Peak Power = 175 Watts
Module Efficiency = 13.3%
Max System Voltage = 600 Volts (UL); 715 Volts (TUV)
Peak Power Voltage = 35.4 Volts
Peak Power Current = 4.95 Amps
Open Circuit Current = 44.6 Volts
Short Circuit Current = 5.43 Amps
Min. Peak Power = 166.25 Watts
Tolerance on Peak Power = +/- 5

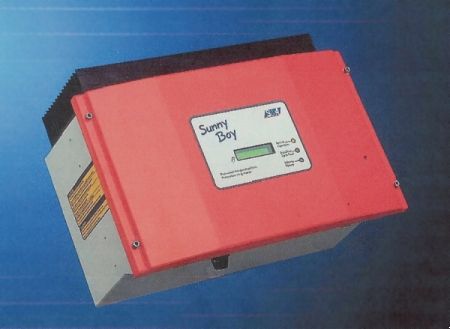

SUNNY BOY 1800U SINE WAVE INVERTER SPECIFICATIONS
Sunny Boy's unsurpassed reliability and efficiency are the result of SMA's manufacturing philiosophy that combines simple design with robust execution... SMA's state-of-the-art maximum power point tracking performance results in greater real-world energy capture than any other grid-tied inverter...
Sunny Boy's safety and reliability record is also exceptional due, in part, to the inverter's redundant grid monitoring and built-in ground fault detection and interruption protection... The inverter's IGBT power stage generates a nearly perfect sine wave with the lowest harmonic distortion in the industry and meets ultra-strict FCC EMC standards... SMA's unique string inverter technology makes future system expansion simple... SMA advanced communication options are available to satisfy almost any application...
Inverter Technology = Real sine-wave, current source, high frequency PWM...
AC Input Voltage = 106 - 132 (120V)
AC Input Frequency = 59.3 - 60.5 (60Hz)
Minimun DC Input Voltage = 139 - 170V DC
Peak Power Tracking Voltage = 156 - 350V DC
DC Input Voltage = 156 - 400V DC
Maximum Array Input Power = 2200W (DC@STC)
Maximum AC Power Output = 1800W
Current THD = <4%
Power Factor = Unity
Peak Inverter Efficiency = 93.6%
Cooling = *Convection cooling (no fan)
PV Start Voltage = 180V DC
Maximum AC Output Current = 15.0A
Maximum DC Input Current = 12.0A
DC Voltage Ripple = <5%
Power Consumption = 0.25W nightime, <7W standby
Ambient Temperature Rating = 45 degrees C
Enclosure NEMA 4X (iP65) Stanless Steel
Dimensions = 17.11W x 11.60H x 8.40D in.
Weight = 59.4 lbs.
Compliance = UL 1741, E210376, UL 1998, IEEE 519, IEEE 929, ANSI C62.41 C1 & C3, FCC part 15A & B
* Optional external fan (Sunny Breeze) available...
ELECTRICAL TERMS FOR SOLAR PV AND BATTERIES
AC = Alternating Current; a flow of electrons which regularly reverses its direction of flow... 60 cycles per second is the US standard... One cycle per second is called one Hertz (Hz).... Because of how generators work the switching of peak positive current to peak negative current takes place gradually in a sine wave pattern... Can not be stored like DC in a battery....
DC = Direct Current; a flow of electrons that flows only in one direction, negative to positive... PV's produce DC power... DC can be stored electrochemically in a battery...
Electron = A negatively charged particle which orbits the positively charged nucleus of an atom... Electrons have 1/1837 the mass of hydrogen (the lightest atom), therefore electrons are subatomic!
Electricity = The movement of electrons through a conductor... In conductors, such as glod, copper, and aluminum electrons can be easily forced to break orbit and flow to a new orbit around at a neighboring atom...
Electromotive Force (emf) = The force that causes electrons to flow because of a difference in electrical potential (measured in volts)....
Volts (V) or (E) = The electromotive force which will cause current to flow... A standard definition of the volt is: an emf of 1 Volt is necessary to move a current of 1 Amp through a 1 Ohm resistor... A voltmeter measures the difference in potential between two points... It may be helpful to think of voltage to electricity flow as pressure is to water flow... Named after Allesandro Volta the Italian physicist who by 1800 was making the first batteries....
Ampere Amp (A) or (I) = Unit of measurement of electric flow, or current, like volume of water in a stream... A count of how many electrons pass a given point in one second... A closed circuit is necessary for current flow... Named after Andre Ampere, the French mathematician and physicist who quantified electric flow around about the year 1820...
Resistance = Opposition to the flow of current... Unit of measurement is called an Ohm, stated as R, or by the Greek letter omega... All conductors have some resistance, this is necessary because if a conductor had no resistance the connection would be a short circuit with ecessive current flow... Insulators have high resistance and conductors have low resistance... Bad connections (loose, corroded, or dirty) have high resistance and can result in little current flow...
Ohm's Law = Named after the German physicist Georg Ohm who in 1827 described resistance to electrical flow... Expresses the fundamental relationship between voltage, current, and resistance... Current (Amps, or I) in a circuit equals Voltage (E) divided by Resistance (Ohms, or R)... I = E / R or Amps = Volts . Ohms... By using simple algebra Ohm's law can be reattanged a third way: R = E /I or Resistance = Volts / Amps - So to recap: The current flow in a circuit depends on both the voltage of the source (battery, or PV) and the resistance of the circuit...
Power = The amount of work being done... The unit measurement of power is called a Watt (W)... It is named after James Watt a Scottish engineer, 1736-1819... Electric power is simply the product of volatge times current... Watts = Volts x Amps... Can be rearranged as Volts = Watts / Amps and also as Amps = Watts / Volts...
Inverter = A device that converts DC to AC... There are modified sine wave (MSW) inverters, which are in reality closer to square wave than a sine wave... MSW inverters have from 30 to 40% Total Harmonic Distortion (THD), or distortion from a pure sine wave... The utility grid averages, about, 3% THD... A Trace SW inverter has from 3 to 5%, and Exeltech inverter has 1 to 2% THD...
Photovoltaic = PV: Photoelectric, light electric, or solar electric... Principal was discovered by the French physicist Edmund Becquerel in 1839, interestingly one of his relatives discovered the principal of atomic energy some years later... So PV predates nuclear power! It was not until scientists at Bell Labs in 1954 were working on silicon rectifiers (diodes) that the real potential of PV started to become clear... The space race of the late 50's forward gave PV's a niche that they have filled ever since... Because space has unlimited sunlight and PV's are autonomous power sources and are lightweight they have powered all of America's satellites, from tiny Vanguard to the very large Skylab...
Silicon PV Cell = A device that converts sunlight directly into electricity... "When illuminated, the PV cell produces a voltage between front and back... This voltage is developed accross a junction that is built into the cell structure...This voltage can be used to produce a current, just like from a battery, but the amount of current is limited by the amount of light falling on the cell...Richard Komp, PhD (in his book Practical Photovoltaics)
Open-Circuit Voltage (Voc) = The voltage of a PV cell, or module, when measured without a load being connected... It depends on the amount of sunlight hitting the PV but this voltage reading is always higher than the peak voltage...
Short-Circuit Current (Isc) = The maximum current a PV cell can deliver into a short circuit... Thsi number of Amps is directly proportional to the area of the cell and intensity of the Sunlight... This can be measured with an appropriate meter, or meter - shunt combination...
PV, or Solar Module = A series string of 32 to 36 cells, producing an open circuit voltage in bright sunlight of about 20 volts, or about 17 volts whne producing maximum power when connected to a load (battery, wtare pump, etc...) Total current of a series string is the same as a single cell...
PV, or Solar Array = A group of modules combined on a mounting structure... May be wired in series for increased voltage, or in parallel for increased current, or a combination called series-parallel...
PV Charge Controller or Regulator = A device used to prevent the overcharging of a battery(s) by PV's...
Shunt = A low value resitor used in parallel with a meter to increase the amount of current the meter can measure...
Battery = A group of interconnected electrochemical cells... Single cells are considered to be a battery if they are used alone... A battery cell contains an anode, a cathode, and the electrolyte... The nominal voltage of a lead-acid cell is 2 volts... Batteries come basically in two types, lead-acid (wet cell / like auto battery..) and gel cell (which require less maintenance...) Deep Cycle batteries recommended...
Deep -Cycle Battery = A battery specifically made to have up to 80% of its energy capacity removed and replaced repeatedly for many cycles... The paltes of this battery are much thicker than are starting battery plates...
Anode = Is the electrode (plate) within the cell which undergoes the chemical process of oxidation... Electrically, the anode is the cell's positive terminal....
Cathode = The electrode (plate) which undergoes the chemical process of reduction... The negative terminal of the cell...
Electrolyte = The medium of ion (electrically charged particle or molecule transport within the cell... The electrolyte provides a path for electron transfer between the anode and the cathode...
Active Material = The materials which chemically react within the cell to release free electrons... One active material is metal or metallic compound which is oxidized... The other active material, often a metallic oxide, is reduced....
Series = A connection from one cell or battery to another (or from one PV module to another), negative to positive, which results in twice the voltage... Note that the current stays the same when series interconnecting...
Parallel = A connection between cells or bateries (also PV's) to increase the current capacity... The voltage stays the same when we wire positive to positive and negative to negative, but the capacity in battery amp-hrs is the sum of the batteries wired in parallel... With PV arrays parallel wired you add up the amps available from each parallel unit, or set of series wired modules, to get your total current output..
Ampere-Hours, or amp-hrs = An amp hour is a current of one amp flowing for one hour... A term used to tell the amount of energy a battery has before it needs to be recharged... Capacity of a battery... You can convert amps-hrs to watt hours by multiplying amp-hrs by systems battery voltage...
Cycle = One complete charge / discharge sequence of the battery... Deep cycle batteries are rated to last for so many cycles... Such as a Trojan T-105 golf-cart battery will last for 700 deep cycles, and a Surrette CH-375 will last for 1,175 deep cycles...
State of Charge = A ratio, expressed in percent, of the energy remaining in a battery in relation to its capacity whne full...
Specific Gravity, or SG = Is the ratio of a liquid's density of water... Sulfuric acid is denser than water so therefore you can measure it with a battery hydrometer (tool that measures SG) and you can tell as what state of charge your cells are at...
Self Discharge = The tendency of all electrochemical cells to lose energy due to internal chemical reactions within the cells... Also called local action...
Charge Rate = The amount of energy per unit of time which is being added to the battery... Commonly expressed as a ratio of the battery's rated capacity to charge in relation to the time of charge duration... If you have a battery with a storage capacity of 1,000 amp-hrs and your PV array is rated at 50 amps then your charge rate is expressed as C/20 (1,000/50)...
Equalized Charge = The controlled overcharge of a seemingly fully charged battery (many cells within the battery already are fully charged) to bring the weaker cell(s) up to full charge... Should be accomplished every 30 days, or as neede... You can determine unequal cells with a hydrmeter (should be within 15 points lowest to highest reading), or if you have the large individual cells with outside terminals you can check voltage readings across each cell and compare them (should be within .05 volts lowest to highest readings)....
