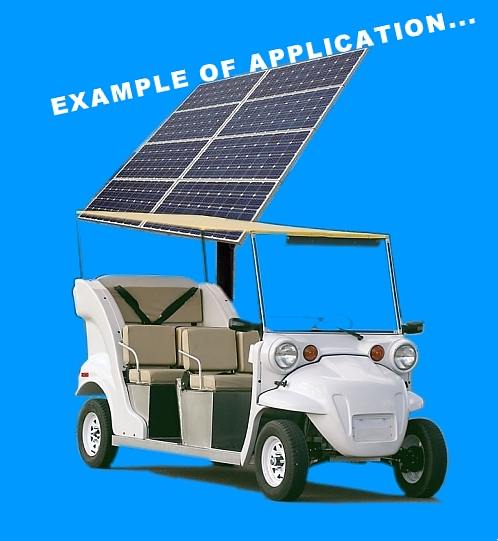

THIS LISTING IS FOR 2 SHELL 165 WATT SOLAR PANELS AND THE OUTBACK MX60 MPPT CHARGE CONTROLLER WHICH CAN CHARGE AN NEV, NEIGHBORHOOD ELECTRIC VEHICLE, BATTERIES AT 36 VDC OR 48 VDC... MAXIMUM VOLTAGE IS UP TO 60 VDC... THE LISTING DOES NOT INCLUDE THE BATTERIES FOR THE NEV SYSTEM OR THE PANEL MOUNTS, OR NEVS SHOWN IN EXAMPLE PICTURES... THE OUTBACK MX60 CHARGE CONTROL CAN HANDLE AN ADDITIONAL 6 SHELL 165 WATT SOLAR PANELS, WHICH ARE NOT INCLUDED IN THIS LISTING... THE TOTAL OF 8 SOLAR PANELS COULD BE USED TO SHORTEN CHARGING TIME...
FOR EXAMPLE, IF THE EV OR NEV BATTERIES ARE RATED AT 48 VDC WITH 100 AMP (AH) HOUR CAPACITY, IT REQUIRES A TOTAL OF 4800 WATT HOURS IN ORDER TO BE COMPLETELY CHARGED... THEREFORE, THE 2 SHELL 165 WATT SOLAR PANELS WOULD REQUIRE ABOUT 14 HOURS OF DIRECT SUNLIGHT IN ORDER TO CHARGE THE BATTERIES... HOWEVER, IF THERE WERE 8 SHELL 165 WATT SOLAR PANELS, IT WOULD ONLY REQUIRE ABOUT 4 HOURS OF CHARGING TIME...
THIS SYSTEM COULD BE USED AS A REMOTE CHARGING STATION WITH UP TO 8 PANELS, 6 SOLD SEPARARTELY, TO ACCELERATE THE CHARGING TIME... THE ULTIMATE OPTION WOULD BE TO SET UP A CHARGING STATION AT SEVERAL LOCATIONS EXTEND RANGE OF THE NEV WITHOUT THE NEED OF ELECTRICAL POWER FROM THE ELECTRICAL GRID...
Shipping Information: For shipping and handling cost please inquire within or call 1-800-222-0017 and ask for Ben...
Note: Please allow up to 15 business days for delivery due to the extreme shortage and escalating demand for this product...
Note: We Export, inquire within @ 1-800-222-0017...

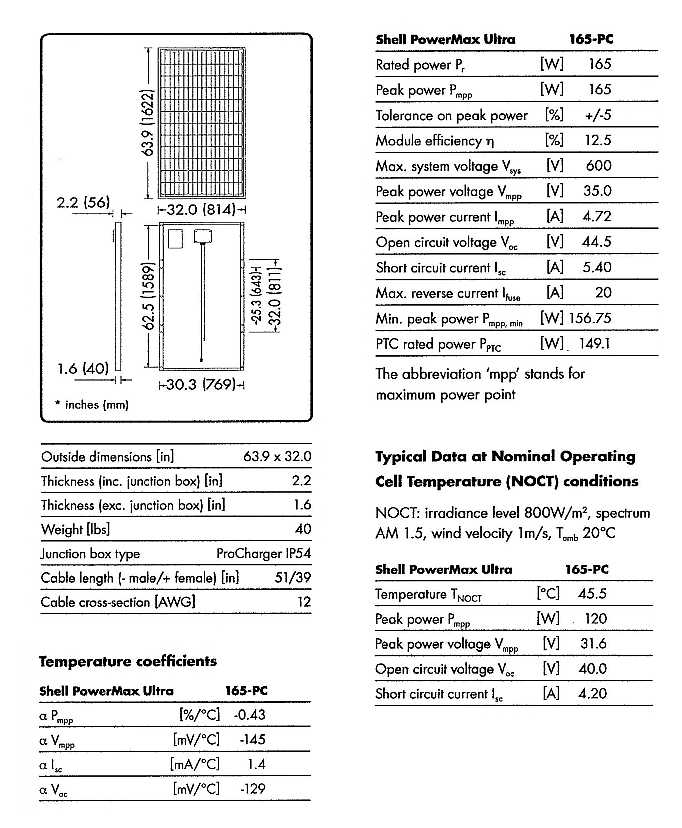

SHELL 165-PC - 165 WATT 24vdc SOLAR PANEL SPECIFICATIONS, PER SOLAR PANEL...
25
Year Limited Warranty by Manufacturer...
Listed
by Underwriter's Laboratories for UL 1703...
Certified
for IEC 61215...
High
efficiency crystalline silicon cell technology; enhanced by TOPS(tm) and new
silicon nitride anti-reflection coatings...
One
of the industry's leading energy yields in a wide variety of climates...
Products
rated on fully stabilized initial power so you get the power you pay for...
Module
design proven over 30 years of field operations with field failure rates less
than 0.1%...
Extended
limited power warranties backed by a company you can trust...
Suitable
for high snow and wind loads...
UL
Fire Safety Class C
Pre-assembled
cables and Multi-Contact (registered) plugs...
12
mounting holes per product; 4 grounding holes...
20
Amp series fuse rating...
Note:
This panel comes with "MC" connector junction box, one negative wire and one
positive wire...

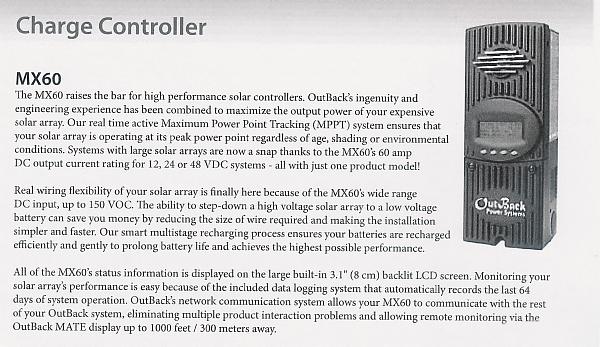

OUTBACK MX60 MAXIMUM POWER POINT TRACKING (MPPT) CHARGE CONTROL SPECIFICATIONS
Output
Current Rating = 60 amps DC Maximum at 12, 24 or 48 VDC...
Nominal
Battery Voltage = 12, 24, 32, 36, 48, 54 or 60 VDC (programmable) ....
PV
(Photovoltaic Solar Panel) Open circuit Voltage = 125 VDC Maximum ...
Standby
Power Consumption = Less than 1 watt typical...
Charging
Regulation Methods = Five Stage: Bulk, Absorption, Float, Silent, Equalization
...
Voltage
Regulation Setpints = 13 - 80 VDC ...
Equalization
Voltage = Adjustable 1.0 to 5.0 VDC above Bulk Setpoint...
Temperature
Compensation = Programmable slope -2.0mV/degrees C/Cell to -5.0mV/degreesC/Cell
...
Voltage
Step-Down Capability = Can change a 12 vdc or 24 vdc battery from 48 vdc nominal
PV array ...
Power
Conversion Efficiency = 99.1% @ 40 amps Output & 97.3% @ 60 amps Output ...
Digital
Display = 4 line 80 character backlit LCD Display ...
Remote
Interface = RJ 45 Modular Connector CAT 5 Cable 8 wire ...
Operating
Temperature Range = -40 to 60 degrees C Power derated above 25 dgrees C ...
Environmental
Rating = Indoor Type 1 ...
Conduit
Knockouts = Two 3/4 - 1" on the back; One 1" - 1 1/2" on each side; Two 1" -
1/ 1/2" on the bottom ...
Warranty
= Two years parts and labor & Optional Extended Warranty ...
Dimensions
= 14.5" H x 5.75" W x 5.75" D Weight = 12 lbs...
FOR TECHNICAL ASSISTANCE OR QUESTIONS CALL 1-800-222-0017 (24/7) Ask For BEN...
Please allow up to 15 business days for shipping due to the high demmand for this product...
