INSTALL 2 LIGHT-WEIGHT SKYLINE SOLAR COLLECTORS AND SOLAR PUMP FOR AN AFFORDABLE, ATTRACTIVE AND EASY-TO-INSTALL SOLAR WATER HEATING SYSTEM... THIS SYSTEM IS DESIGNED FOR 2 PERSONS IN A NO-FREEZE ZONE...
WE ARE SELLING THE 2 LIGHT-WEIGHT SKYLINE SOLAR COLLECTORS AND SOLAR PUMP FOR FOR $995.00 USD...

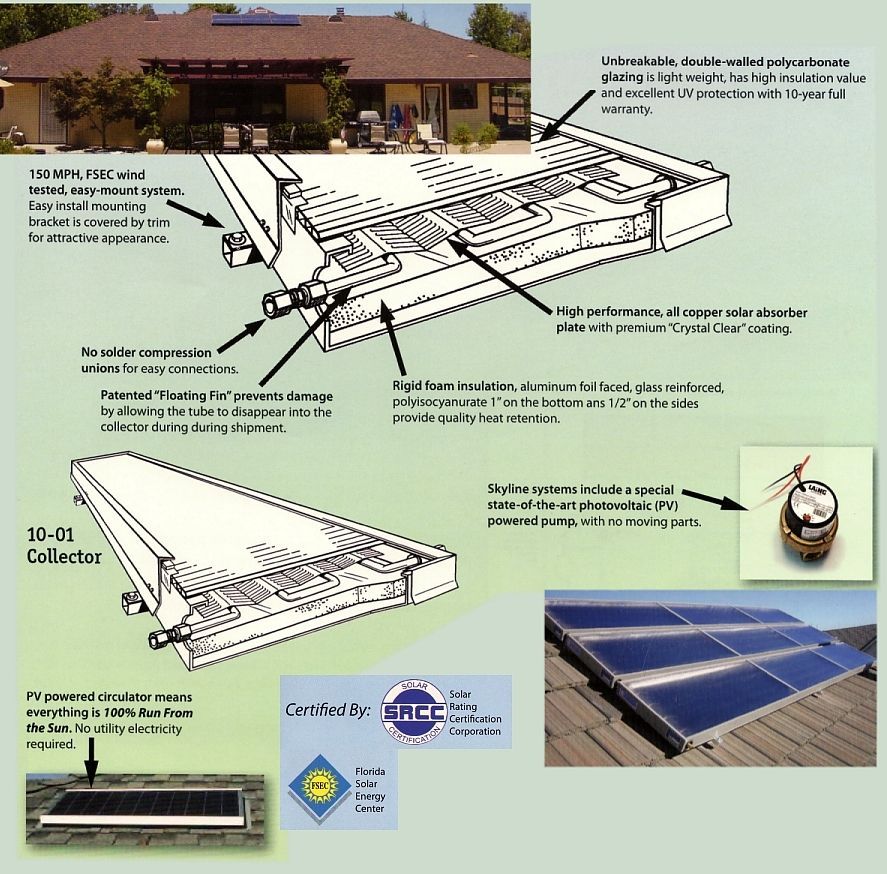

THE UNBREAKABLE POLYCARBONATE COVER ON AN ALUMINUM FRAME MAKES IT MUCH LIGHTER AND SAFER THAN GLASS... Each unit's weight is only 19 pounds, which makes it easier to install compared to other collectors which weigh 2 to 3 times more...
THIS SYSTEM COULD PAY FOR ITSELF IN 3 YEARS BY USING FREE FUEL FROM THE SUN AND THE FEDERAL 30% TAX CREDIT...
HAVE HOT WATER EVEN DURING A POWER FAILURE...
THIS SKYLINE SOLAR HOT WATER SYSTEM IS CERTFIED BY SRCC (Solar Rating Certification Corp.) AND FSEC (Florida Solar Energy Center) AND IS AN ENERGY STAR PATNER...
SHIPPING INFORMATION: Will ship within the Continental US Only for $195.00 USD, excluding Alaska and Hawaii... For shipping costs to Alaska/Hawaii or Canada please inquire within... Truck Freight Shipping... SHIPPING COSTS INCLUDE CRATING CHARGE... ESTIMATED SHIPPING TIME IS 10 - 14 BUSINESS DAYS...
THE BELOW SOLAR HOT WATER SYSTEM SHOULD BE INSTALLED IN ACCORDANCE WITH LOCAL BUILDING CODES...

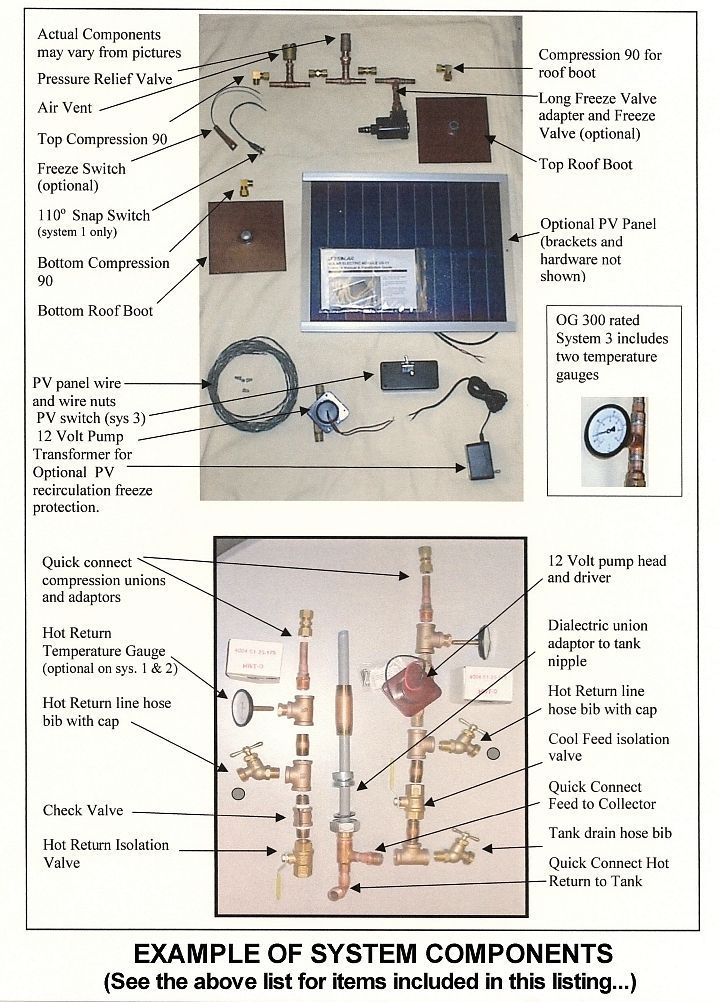

THE BELOW ITEMS ARE INCLUDED IN THIS LISTING...(all items are brand-new-in-the-box)
(2) Skyline 10-01 Solar Hot Water Collectors with all cooper, "Crystal Clear" costed high performance absorber... (4) ELL mounting brackets, per collector... (4) Washers and (8) tec screws are included per collector...
Sophisticated
12 Volt Laing D5 Electronic Circulator (pump)... El Sid 12vdc pump...
High
quality "PV" solar electric panel matched to power need of system's 12vdc pump...
(1)
1/2" Male adjustable pressure relief valve (set to 150lb)...
(2)
Hose bibs with 1/2" male thread...
(2)
Ball valves with 1/2" sweat fittings...
(2)
1/2" Compression unions plus one union body per additional stacked collector...
(4)
1/2" x 3/8" Copper reducing adaptors...
Two
feet of copper tubing...
Exclusive,
zero resistance floating ball check valve with 1/2" male pipe thread fittings...
Installation
Manual, Operations and Maintenance Manuals, and Labels...
THE FOLLOWING ITEMS ARE NOT INCLUDED IN THIS LISTING BUT ARE AVAILABLE FOR AN ADDITIONAL CHARGE OF $695.00 USD... THE FOLLOWING ITEMS, IN ADDITION TO THE ABOVE ITEMS, WILL PROVIDE YOU WITH ALL THE NECESSARY ITEMS TO INSTALL A COMPLETE SYSTEM...
Exclusive
predrilled and assembled collector rail mount system with color coded "U" brackets...
Choice
of "stacked" or "side by side" collector layouts...
Roof
mounting lag set or special mounting as needed for composition or tile roof...
Exclusive,
100% complete no-solder solar loop with all fittings...
Coin
vent with pre-soldered assembly...
(2)
Color coded roof boots...
PV
Panel Mounting Kit with 4 wire nuts...
Twin
digital thermometer box with on/off switch...
25
Feet of PV wire...
50
Feet of 1/2" OD soft copper tubing...
Choice
of 2 standard and 24 Free Optional Collector Trim Colors...
Pre-assembled
"No Solder" Tempering Valve assembly with flex tubing connections...
36
Feet of high temperature 5/8" x 1/2" wall insulation (more if needed) plus 6
feet of 7/8" x 1/2" wall insulation...
Tube
of high quality Polyurethane Roof Sealant...
Aluminum
tape to cover and protect outside lines...
Color
matched can of trim paint to paint outside aluminum insulator cover, rails,
etc...
Skyline 10-01 Solar Hot Water Collector Specifications per unit...
Trim
& Frame Materials: Finished 27 mil Aluminum Trim and Frame = Total 54 mil (1.37
mm)
Absorber
Material: "Black Crystal" coated - all Copper with unions...
Glazing:
.236 (6.0 mm) Twinwall Polycarbonate UV Treated
Dimensions
/ Weight: Length = 72", Width = 20", Depth = 3", WEIGHT = 19 LBS
Fluid
Capacity: 15 gallons
Recommended
Flow Rates: .20 to .35 GPM (0.946 to 1.324 L/min)
Maximum
Working Pressure: 150 PSI (10.21 atm)
Maximum
Stagnation Temperature: 250 degrees F (121.11 degrees C)
Color:
Musket Brown (C101 - default color) or Dove/Old Town Gray (C109) - Optional
Colors Available...
SHIPPING INFORMATION: Will ship these items for a $195.00 USD shipping costs within the Continental US Only, excluding Alaska/Hawaii... PLEASE ALLOW 10 - 14 BUSINESS DAYS FOR SHIPPING BY TRUCK... SHIPPING COSTS INCLUDE CRATING CHARGE... For shipping costs to Alaska/Hawaii please inquire within... For information on shipping costs for export shipments, please inquire within as well...
