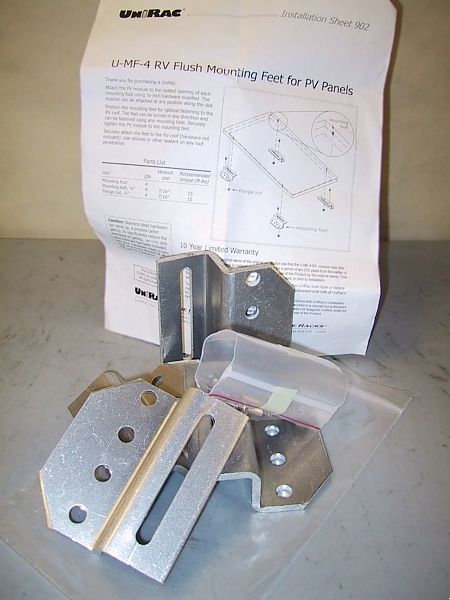

NEW IN-THE-BOX UNISOLAR US64 - 64 WATT 12VDC SOLAR PANEL WITH FLUSH MOUNT KIT & MORNINGSTAR SUNGUARD CHARGE CONTROLLER TO PROTECT THE BATTERY FROM BEING OVER CHARGED BY THE SOLAR PANEL...
Shipping Cost is $49.00, and is for shipment of these items within the continental US excluding AK, HI, PR... For shipping cost to AK, HI, PR, please inquire within...
PLEASE ALLOW UP TO 15 BUSINESS DAYS FOR DELIVERY DUE TO GLOBAL DEMAND FOR THIS PRODUCT...
Note: We Export, inquire within @ 1-800-222-0017...

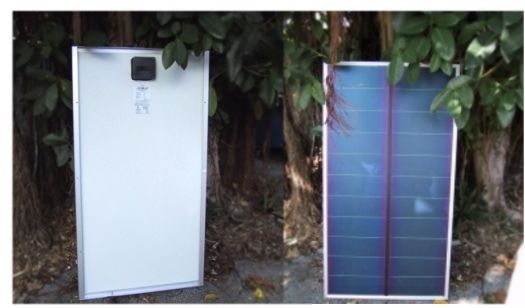

UNISOLAR US64 - 64 Watt 12vdc Solar Panel Specifications, per panel...
The US64 solar module is exceptionally durable... This panel is encapsulated in UV-stabilized polmers and framed with anodized aluminum... A Galvalume steel backing provides stiffness... The polymer encapsulation includes EVA and fluoropolymer Tefzel, a DuPont film similar to Teflon... The unbreakable, non-glass module is bonded to an anodized aluminum frame for strength... Frame includes mounting holes... The US-64 features bypass diodes, weather resistant junction box with 1/2" NPT knock outs and carry a twenty-year limited warranty by the manufacturer... The US-64 is UL listed...
Rated
Power (Watts) = 64 Watts
Rated
Voltage (Vmp) = 16.5
Current
- Imp (Max Power per hour) = 3.88 Amps
Open
Circuit Voltage (Voc) = 23.8
Short
Circuit Current (Isc) = 4.80
Series
Fuse Rating (Amps) = 8

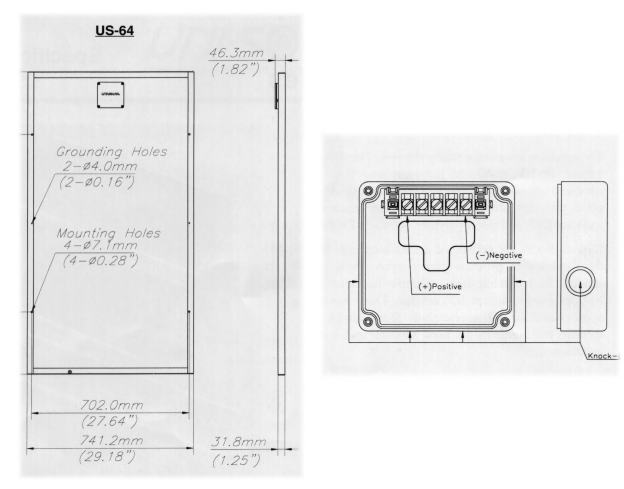

Dimensions
(Inches) = 53.78" x 29.18"
Unit
Weight (lbs.) = 20.2

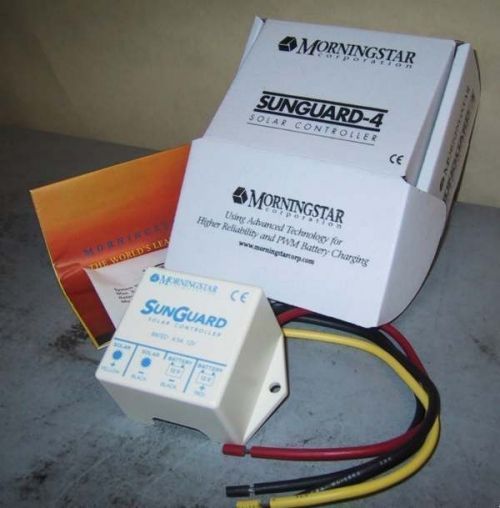

SPECIFICATIONS FOR THE MORNINGSTAR SUNGUARD 4 - 4 AMP CHARGE CONTROL....
System
Volts = 12V
Max
Solar Volts = 30V
Rated
Solar Input = 4.5 Amps
Max
Input (5 min.) = 5.5 Amps
PWM
Setpoint = 14.1 V
Accuracy
= +/-60 mA
Min
Operating Volts = 6 V
Self-consumption
= 6 mA
Max
Solar Short Circuit Rating = 5.5 A
PWM
Temp Compensation = -20 mV/degrees C
Reverse
Current Leakage = <10 uA
Ambient
Temperature Range = -40 to +60 degrees C
Relative
Humidity = 100%
CE
Certified
Epoxy
encapsulated for protection in marine and humid conditions...
5
Year Warranty by MFG...
