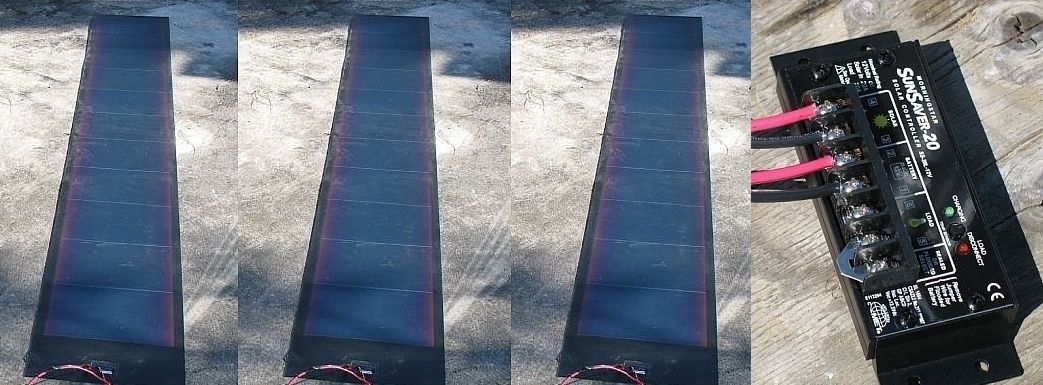

CUT ELECTRIC BILL WITH 3 UNBREAKABLE 9 FOOT SOLAR POWER 204 WATT PEEL & STICK LAMINATES... (WATTS STATED ARE THE TOTAL WATTS OF ALL THREE LAMINATES) INCLUDES BATTERY CHARGE CONTROLLER... |
CALL
FOR PRICING...
|
Stan Ovshinsky Video - Founder of Uni-Solar manufacturer of amorphous thin film solar pv modules...

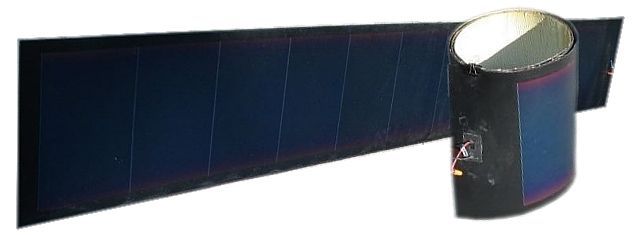

PORTABLE
SOLAR POWER GENERATOR OR PERMANENT SOLAR ROOFING FOR METAL OR MEMBRANE
ROOFS...
|
EXPANDABLE SYSTEM
CAN BE COILED IN A 24 INCH BOX
RESIDENTIAL OR COMMERCIAL USE
EACH 9 FOOT LAMINATE WEIGHS 8 POUNDS
BACKUP FOR BLACKOUTS FROM: Hurricanes, Floods, Tornados, Earthquakes, Blizzards, Terrorist Attacks
OPERATE
12 VOLT LIGHTING, COMPUTERS, PHONES, WATER PUMPS, SMALL APPLIANCES,
TELEVISIONS...
|
High
Temperature and Low Light Performance
|
5 Year Limited Product
Warranty
|
Limited Power Output
Warranty:
|
|
Quick
- Connect Terminals and Adhesive Backing
|
92% at 10yrs. / 84%
at 20yrs. / 80% at 25yrs. of min.power
|
Bypass
Diodes for Shadow Tolerance
|
Dimensions:
Length = 2849 mm or 112.1 inches
|
Width
= 394 mm or 15.5 inches / Depth = 4 mm or 0.2 inches
|
|
Maximum
Power (Pmax) = 68 Watts
|
Depth
including potted terminal housing = 16 mm or 0.6 inches
|
Voltage
at Pmax (Vmp) = 16.5 Volts / 12 volt nominal
|
|
Current
at Pmax (Imp) = 4.13 Amps
|
Weight
= 3.9 kg or 8.7 pounds
|
Short-circuit
Current (Isc) = 5.1 Amps
|
|
Open-circuit
Voltage (Voc) = 23.1 Volts
|
Output
Cables = 4 mm sq. 12 AWG cable with weatherproof DC-
|
Maximum
Series Fuse Rating = 8 Amps
|
rated
quick-connect terminals 560 mm or 22 inches in length...
|
UL
1703 Listed by Underwriters Laboratories for
|
Encapsulation
= Durable ETFE high light-transmissive polymer
|
electrical
and fire safety (Class A Max. Slope 2/12,
|
|
Class
B Max. Slope 3/12, Class C Unlimited Slope
|
Adhesive
= Ethylene propylene copolymer adhesive
|
fire
ratings) for use in systems up to 600 VDC...
|
sealant
with microbial inhibitor...
|
IEC
61646 and IEC 61730 certitied by TUV Rheinland
|
Cell
Type = 11 triple junction amorphous silicon solar cells
|
for
use in systems up to 1000 VDC...
|
356
mm x 239 mm or 14" x 9.4" connected in series...
|

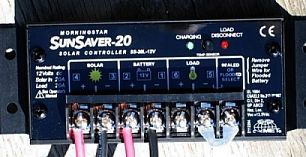

MORNINGSTAR SUNSAVER 20 - 12 VOLT 20 AMP CHARGE CONTROL SPECIFICATIONS:
Morningstar
SunSaver is the worlds leading small solar
|
Features:
|
controller
for both professional and consumer applications...
|
12
Volt Nominal 20 Amp Model
|
Low
Voltage Disconnect (LVD) for DC Devices
|
|
SunSaver's
Technology Provides:
|
100%
Solid State Construction
|
Exceptional
Reliability / Consistent High Quality
|
Series
design (not shunt)...
|
Pulse
Width Modulation (PWM) Battery Charging
|
True
0 to 100% PWM duty cycle...
|
Setpoint
accuracy to 35 mV (milli-volts)...
|
|
The
SunSaver's advanced design delivers outstanding
|
Rated
for 25% overloads...
|
performance
and value... The SunSaver's low cost is
|
Fully
encapsulated in epoxy potting...
|
made
possible by Morningstar's unique approach to
|
Marine
rated terminals/anodized case...
|
design
and manufacturing:
|
Temperature
Compensation
|
Automated
Production / ISO 9002 Quality Programs
|
Sealed/Flooded
battery select...
|
Latest
power electronic technologies...
|
No
need to derate...
|
Latest
control and logic technologies...
|
Parrallel
for 40 amps or more...
|
High
volume manufacturing...
|
Green Charging and
Red LVD Indicators
|
|
|
Warranty =
Five Year Warranty by Manufacturer
|
Approved
for use in hazardous locations -
|
Class
1, Division 2, Groups A, B, C, D / CE Certified
|

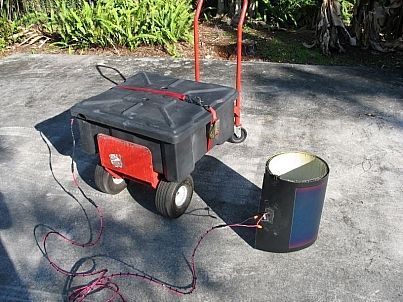

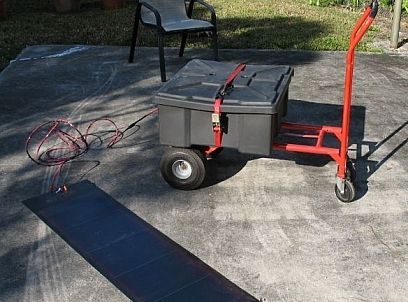

PORTABLE
SOLAR POWER GENERATOR APPLICATION EXAMPLES
|
OTHER POSSIBLE APPLICATIONS
Beach / Picnic / Tool Power at Construction Site / Road Trips / Truck Power / Emergency Highway Lighting / Remote Location Power / Camping / UPS (Uninterupted Power Supply) Backup
